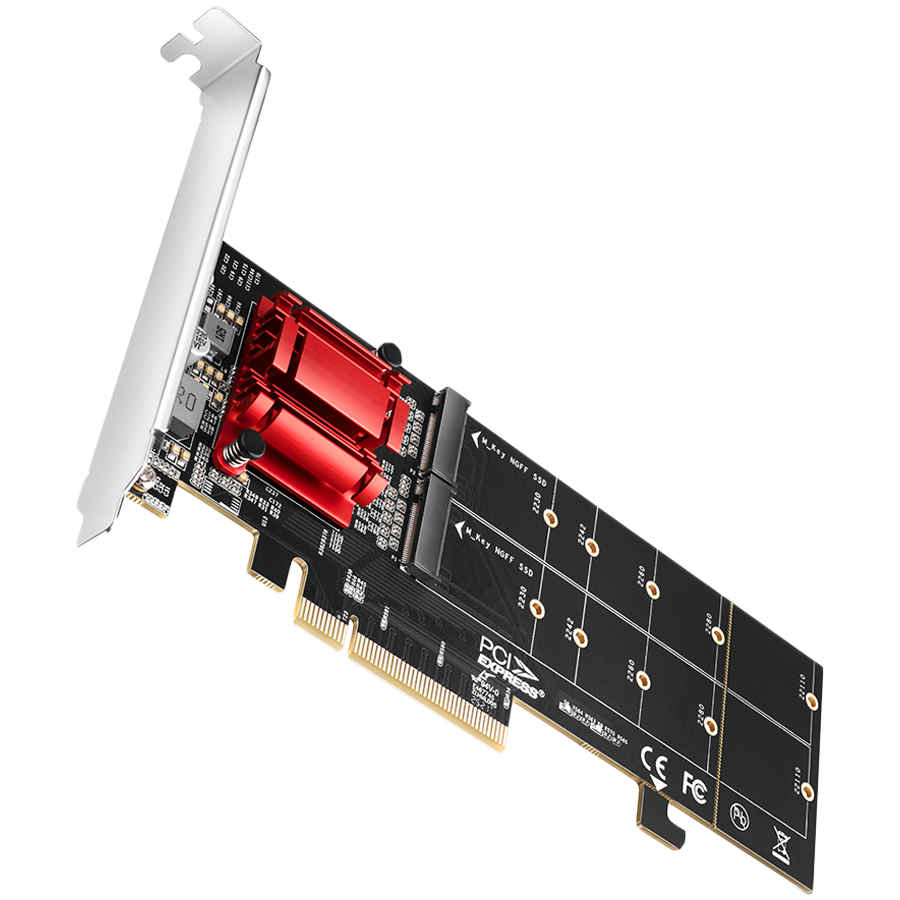

Axagon PCEM2-ND PCIE 2X NVME M.2 CONTROLLERPCI-Express x8 internal controller for connecting two...

PCEM2-N PCIE NVME M.2 ADAPTER

The AXAGON PCEM2-N internal adapter allows connecting an M.2 SSD disk to a desktop computer using a PCI-Express bus.

High-quality construction, compact size, and well thought-out design make the adapter an ideal choice for upgrading a desktop computer that is not equipped with an M.2 slot.

The adapter supports the use of NVMe (PCI-Express) M.2 SSD disks, both one-sided and double-sided ones. The reduction does not have a limit of SSD disk capacities and M.2 cards with a size of up to 22x80 mm can be used.

Thanks to PCI-Express interface compatible with x4, x8 and x16 slots, a maximum transmission rates can be achieved.

The thermally conductive pad and coppered vents help to remove better heat generated during the operation of M.2 SSD disks. The LED indication indicate either connection or data transfer in the M.2 slot. The package also contains a low profile bracket for mounting the adapter into low profile cases.

• NGFF 75-pin M-key slot to install an NVMe (PCI-Express) M.2 SSD disk.

• Full Plug and Play support.
• Support of M.2 disks with the sizes – 2230, 2242, 2260, 2280 mm.
• Support of M key or B+M key NVMe (PCI-Express) M.2 SSD disks without a maximum capacity limit.
• Support of both one-sided and double-sided M.2 disks.
• Better heat removal due to the coppered vents and thermally conductive pad.
• Support of booting from an SSD card.
• Dimensions 105 x 49 x 8 mm.
• Weight 32 g.
• The installation of drivers is not required.

• The adapter is supplied directly from a PCI-Express bus; no external power supply is needed.

• MS Windows 7 / 8 / 8.1 / 10, Windows Server 2008 R2 / 2012 / 2016 (all 32- and 64-bit versions of Windows supported), and Linux with kernel 2.6.31 and higher.
• Note: When operating under Windows 7, contact the manufacturer of the M.2 SSD to find whether this OS is supported,

• PCI-Express adapter with a standard bracket,
• low profile bracket,
• thermally conductive pad,
• mounting material and a screwdriver,
• printed installation manual in CZ / DE / DK / ENG / ESP / FIN / FR / GR / HR / HU / IT / NL / PL / PT / RO / RU / SK / SWE / TR / BG / CN / ARA,
• packaged in a cardboard.
