Спецификации
- Суич, типFixed Port
- Общ брой портове56
- Основни портове, тип48 x 10/25GE SFP28
- Power Over Ethernet (PoE)-
- Uplink портове8x100G QSFP28
- Свободни (10GB) слотове-
- Управлениеvia 100/1000BASE-T RJ-45 port for out-of-band IP management; Support NebulaFlex Pro for hybrid mode; Standalone management by Web interface; Cloud management by Nebula Control Center; Management through console, ssh, telnet, SNMP
- StackablePhysical stacking up to 2 units

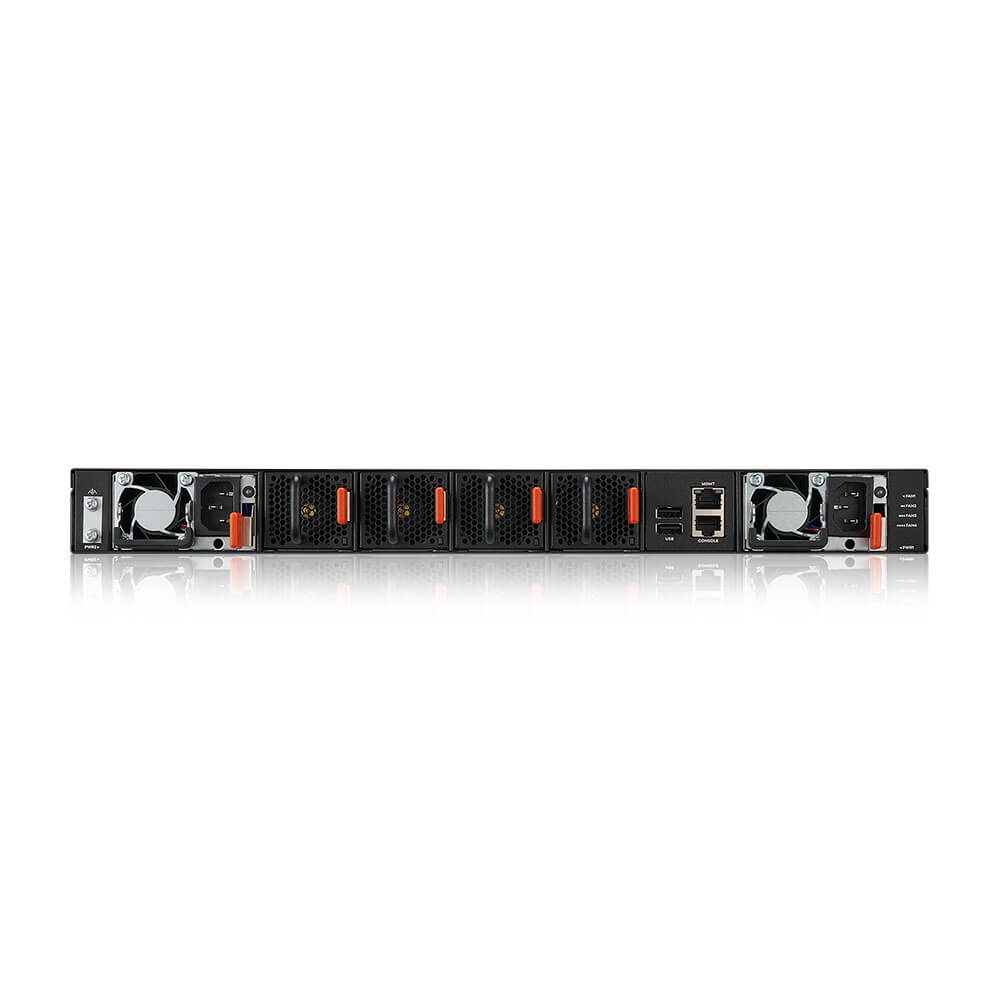

- FansUp to 4 field-replaceable, hot-swappable fans
- ЗахранванеDual hot-swappable AC/DC power supply modules
- RoutingUp to 2-unit stacking with Layer 3 static, policy-based, and dynamic routing; IPv4 static route
- Памет (Flash, RAM)64MB/8GB
- Капацитет за маршрутизиране/превключване, Gbps4 Tbps
- Пропускателна способност, Mpps2 Bpps
- MAC адреси32K
- VLAN (брой, стандарти)802.1Q static VLANs/dynamic VLANs: 4K/4K; Port/MAC/Protocol/IP subnet-based VLAN; Private VLAN; VLAN trunking/translation/ingress filtering; 802.1ad VLAN stacking (QinQ)
- QoSNo. of hardware queues per port: 8; 802.1p; Storm control: Broadcast, Multicast, Unknown Unicast (DLF); Rate limiting, per IP/TCP/UDP per port; 802.1p Class of Service; Policy based prioritization and etc.
- L3 мрежови стандартиIEEE 802.1D Spanning Tree Protocol (STP); IEEE 802.1w Rapid Spanning Tree Protocol (RSTP); IEEE 802.1s Multiple Spanning Tree Protocol (MSTP); IEEE 802.3ad LACP
- IPv6 functionalityACL packet filtering (IPv4/IPv6); Multiple RADIUS servers (IPv4/IPv6); IPv6 Management; IPv6 Interface; IPv6 MLD Snooping; IPv6 static route; IPv6 default routing; IPv6 ECMP; IPv6 Neighbor Discover
- Сигурност802.1x; Port security; MAC authentication; Layer 2 MAC filtering; Layer 3 IP filtering; Layer 4 TCP/UDP socket filtering; Static MAC forwarding; Multiple RADIUS servers (IPv4*/IPv6); Multiple TACACS+ servers; Login authentication by RADIUS/TACACS+
- Размери (Ш, Д, В), mm440 x 489 x 45 mm
- Опция за монтажRackmount
- Гаранция, м.99 месеца
- Тегло, кг.10 кг.
